NetRex Surveillance Station

An effective solution to continuously monitor the live view from your cameras and operate them on an external screen of any size.

Introduction

NetRex Surveillance Station

Monitor – continuous live viewing of your cameras

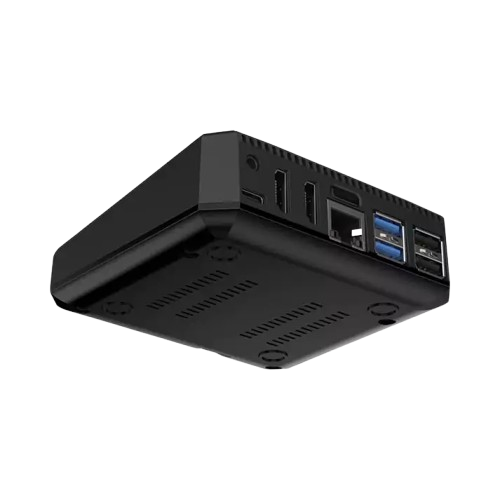

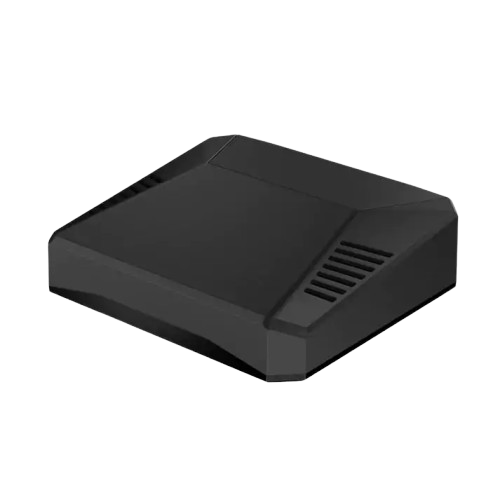

The NetRex Surveillance Station is an effective solution for monitoring the live view, managing recordings and operating your Axis IP cameras. Whether on a monitor in a shop, from the office of your operation, or for central surveillance over all of your locations. The surveillance station consists of a modified high-performance mini computer with special firmware that can be connected to any monitor with DisplayPort / HDMI interface. Thanks to its small size, the station can be placed on the back of the monitor or in its immediate surroundings.

Crime Prevention as well as marketing tool

The NetRex Surveillance Station serves both as crime prevention, as well as a marketing or management tool. In conjunction with an LCD or plasma panel, the station allows you to keep everything in shops, warehouses or other monitored locations constantly under control. And this is thanks to as many as 64 cameras that can be viewed on one single station with minimal power consumption. The surveillance station monitors for you. Simple, reliable and environmentally friendly!

Advantages of NetRex Surveillance stations

01 Fast transfer - +

A good and fast image including sound without the use of an Internet line? With the NetRex Supervisory Station it is possible. When a surveillance station and cameras are placed in the same local area network, a video transmission is performed afterwards. This allows you to enjoy maximum quality and transmission speed.

02 Simple and smart control - +

Control of the surveillance station is simple and intuitive. When you first turn it on, just enter the access data, choose a predefined view of the display and then just watch the shops, warehouses and other sites you are monitoring. Operate the station easily!

03 Schedule of views - +

Set the scheduling of stream shots, cameras and dashboards. Plan schedules for individual elements to create a comprehensive monitoring view that lets you see everything and you’ll never miss anything.

04 Minimum operational requirements - +

The NetRex Supervisor works automatically, so it is not necessary to involve an operator in the entire process. Configuration is performed remotely via the web interface or locally. Thanks to automation, the station will launch even in the event of power outages. Save the valuable time of your operator!

05 Control elements and display device - +

You can control the NetRex Surveillance Station with a keyboard, a mouse, or a special Axis T8311 joystick to operate the PTZ cameras conveniently. You simply connect a small monitor and a large LCD screen or projector through the DisplayPort / HDMI interface. You can have a monitor or a large video wall for a complete viewing experience. Everything exactly according to your needs.

06 NetRex Box - +

For better work with high-resolution recording, we recommend adding the NetRex Box to your infrastructure. This is our designed and harmonized repository that will store all of your recordings in high definition on your local network. The NetRex Box itself can also serve as a surveillance station for live viewing of up to 4 cameras. Choose a solution suited to the size of your business.

Technical parameters of the NetRex Surveillance Station

NetRex Surveillance Station MNetRex Surveillance Station L
Price279 € (excl. VAT)789 € (excl. VAT)
Number of camerasUp to 16Up to 64
ProcessorIntel® Celeron J3455 - 4-core, at 1.5 GHzIntel® Core i7-8650U - 4-core, at 1.9 GHz
Operation memory4 GB DDR3 SO-DIMM4 GB DDR4 SO-DIMM
Graphic cardIntegrated Intel® HD GraphicsIntegrated Intel® UHD Graphics
HDDPowerful and fast SATA 3.0 SSD 120 GB with NetRex applicationsPowerful and fast M.2 SSD 128 GB with NetRex applications
Communication interfaceGigabit LAN 10/100/1000 MbpsGigabit LAN 10/100/1000 Mbps
Device interface1× HDMI 2.0, 4× USB 3.0/3.1, 1× RJ-452× HDMI, 2× USB 3.0, 2× USB 2.0, 1× RJ-45
Consumption10 W15 W
Dimensions115 mm (w) × 51 mm (h) × 111 mm (th.)115 mm (w) × 37 mm (h) × 111 mm (th.)
Weight690 g490 g
AccessoriesWireless Optical Mouse (up to 10 meters)
Power adapter
HDMI cable Premium gilded 1m
Wireless Optical Mouse (up to 10 meters)
Power adapter
HDMI cable Premium gilded 1m

Download

Flyer of NetRex Surveillance Station
